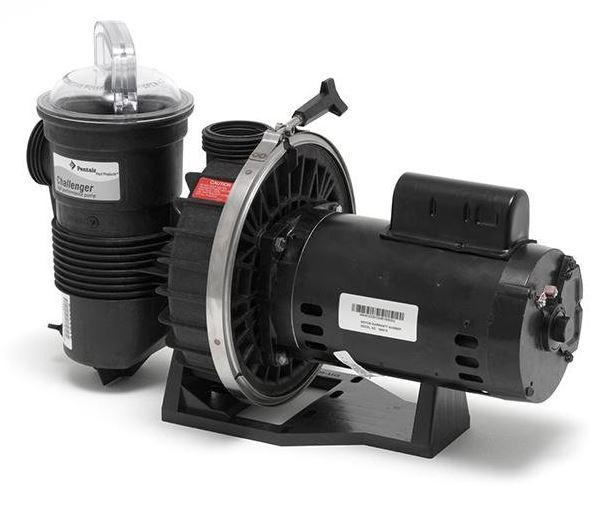

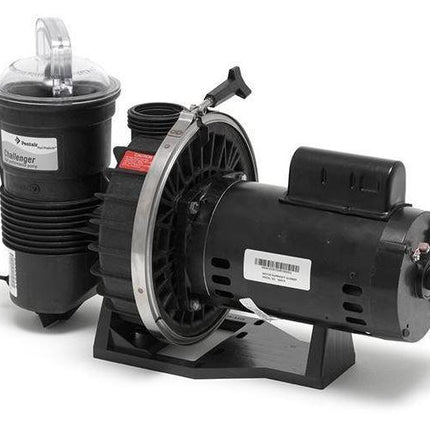

Pentair Challenger 1.5 HP 115/230V Up Rated Single Speed Pool Pump - 346206

Description

Pentair Challenger 1 1/2 Horsepower 115/230 Volts Up Rated 1 Speed Pool Pump (346206) for in-ground pools are designed specifically for applications requiring higher pressure operation to feed multiple needs beyond pool water circulation. Challenger pumps come equipped with rugged fiberglass reinforced housing that features closed impellers and durable custom-molded thermoplastic components that stand up high pressure operation delivering years and years of unattended performance. Top criteria for efficiency, easy maintenance and trouble-free life is what Challenger from Pentair can surely offer.

Applications :

  • In-ground pools
  • Spa Jets
  • In-floor cleaning systems
  • Decorative water features (waterfalls and fountains)

Features :

  • Diffuser and impeller provide excellent high pressure performance for all types of demanding installations
  • Hydraulic design reduces friction and turbulence so more water races through your system with less noise and greater energy efficiency
  • Standard 2 Inches suction and discharge ports permit maximum operating efficiency
  • Extra-large strainer basket extends time between cleanings
  • Transparent strainer pot lid with comfortable handle provides easy access to strainer basket
  • Power end can easily be removed for service or winterizing without disturbing piping or pump support base
  • One-bolt stainless-steel clamp removes easily to provide quick access for any required service
  • Internal components and 2 Inches ports are designed to provide rapid priming and quiet operation
  • No tool required for removing thumbscrew drain plugs for draining and winterizing

Product Specifications :

  • Manufacturer: Pentair
  • Sub Brand: Challenger®
  • Model Number: CHII-N1-1-1/2A
  • Item: High Pressure Pump
  • Type: Standard Efficiency, Up Rated, High Head
  • Voltage Rating: 115/208-230 V
  • Full Load Amps: 16/7.8 - 8 A
  • HP: 1-1/2
  • Service Factor: 1.1
  • SFHP: 1.65
  • Port Size: 2 Inches x 2 Inches NPT
  • Number of Speed: 1-Speed
  • Curve Key: I

Pentair Challenger 1.5 HP 115/230V Up Rated Single Speed Pool Pump - 346206

Product form

SKU: 346206
Barcode: 788379656713

Pentair Challenger 1 1/2 Horsepower 115/230 Volts Up Rated 1 Speed Pool Pump (346206) for in-ground pools are designed specifically... Read more

Out of stock, Not in stock  99% of In Stock orders will ship out same day as long as you order by 2pm EST. Any order after 2pm EST will be shipped the next business day.

$663.99

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Pentair Challenger 1 1/2 Horsepower 115/230 Volts Up Rated 1 Speed Pool Pump (346206) for in-ground pools are designed specifically for applications requiring higher pressure operation to feed multiple needs beyond pool water circulation. Challenger pumps come equipped with rugged fiberglass reinforced housing that features closed impellers and durable custom-molded thermoplastic components that stand up high pressure operation delivering years and years of unattended performance. Top criteria for efficiency, easy maintenance and trouble-free life is what Challenger from Pentair can surely offer.

    Applications :

    • In-ground pools
    • Spa Jets
    • In-floor cleaning systems
    • Decorative water features (waterfalls and fountains)

    Features :

    • Diffuser and impeller provide excellent high pressure performance for all types of demanding installations
    • Hydraulic design reduces friction and turbulence so more water races through your system with less noise and greater energy efficiency
    • Standard 2 Inches suction and discharge ports permit maximum operating efficiency
    • Extra-large strainer basket extends time between cleanings
    • Transparent strainer pot lid with comfortable handle provides easy access to strainer basket
    • Power end can easily be removed for service or winterizing without disturbing piping or pump support base
    • One-bolt stainless-steel clamp removes easily to provide quick access for any required service
    • Internal components and 2 Inches ports are designed to provide rapid priming and quiet operation
    • No tool required for removing thumbscrew drain plugs for draining and winterizing

    Product Specifications :

    • Manufacturer: Pentair
    • Sub Brand: Challenger®
    • Model Number: CHII-N1-1-1/2A
    • Item: High Pressure Pump
    • Type: Standard Efficiency, Up Rated, High Head
    • Voltage Rating: 115/208-230 V
    • Full Load Amps: 16/7.8 - 8 A
    • HP: 1-1/2
    • Service Factor: 1.1
    • SFHP: 1.65
    • Port Size: 2 Inches x 2 Inches NPT
    • Number of Speed: 1-Speed
    • Curve Key: I
