Description

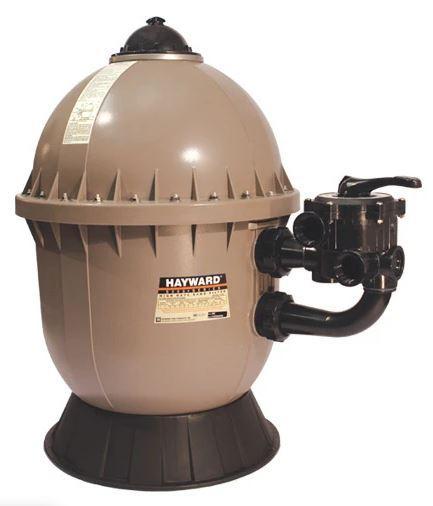

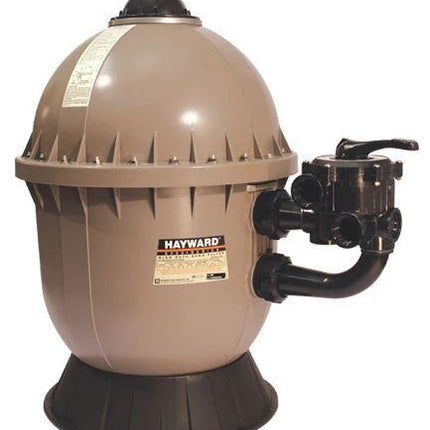

Hayward W3S200 Hi-Rate 20" Sand Filter with 1-1/2" Side Mount Multiport Valve (also known as S200) provides you with quality you can trust. The Hayward Hi-Rate sand filters incorporate the latest pool filter technology to ensure your in ground or above ground pool is operating at its very best. The Hayward Hi-Rate 20" Sand Filter includes all the laterals inside the tank, filter tank base, pressure gauge, and Side Mount 1-1/2" Multiport Valve. The Hayward W3S200 has a 20" tank requiring 200 lbs. of sand (not included) for operation. Molded of durable, corrosion-proof reinforced thermoplastic, they feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. Hi-Rate sets the standard for performance, value and dependability.
Applications:
- In-Ground Pools of all types and sizes
- In-Ground Spas (Residential or Commercial)
- Water Features (Fish Ponds, Fountains and Water Gardens)
Features:
- High Performance Pool Sand Filter
- Durable 6” threaded inspection cover provides convenient access to top of filter
- Corrosion-proof, heavy-duty filter tank injection molded of tough, durable ABS for dependable, all-weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Extra strength, bolted center flange securely fastens tank and allows for maximum access to all internal components
- 6-position Hayward VariFlo control valve with easy-to-use lever-action
- Integral sight glass lets you see when backwash cycle is completed
- Precision engineered umbrella-fold self-cleaning laterals for balanced flow and backwashing, and easy serviceability
Specifications:
- Sand Capacity: 200 Pounds
- Valve: 1-1/2" VariFlo
- Effective Filtration Area: 2.20 ft2
- Design Flow Rate: 44 GPM
- Dimensions: 23-1/2" Width x 37" Height (*Dimensions are for filter only. Add 12" for 1-1/2" Multi-Port Valves)
