Description

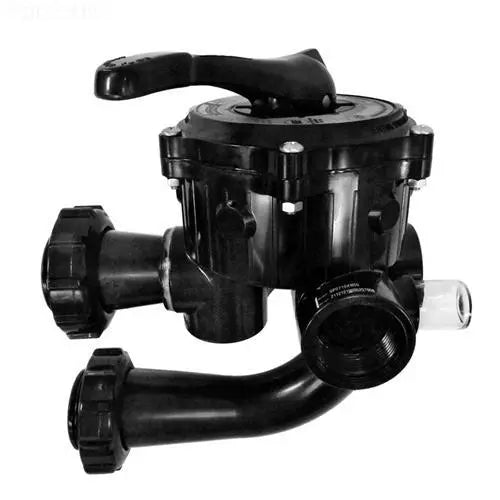

The Hayward Vari-Flo Valve 1.5" SP0710XR50 is a unique six position filter control valve, combining outstanding hydraulic and mechanical characteristics and piping versatility with rugged, modern materials. Completely corrosion-free, and molded in luxurious finish, the Vari-Flo is an efficient, positive sealing control valve for all filtration applications.
Hayward Vari-Flo XL multiport control valve, made of our exclusive PermaGlass XL™ material and engineered for maximum flow at lower pressure drops will be the choice in multiport valves. It will retrofit any filter that has an SP071113 valve that needs replacement and upgrading.
All control valves feature an easy-to-use lever action handle that lets you "dial" up to six valve/filter functions: filter, backwash, waste, rinse, closed or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount or side mount.
Application:
- In-ground Swimming Pools / Hayward Pro-Grid DE Filter
Features:
- Six position sealing and positive indexing positions: Filter, Backwash, Waste, Rinse, Closed and Re-circulate.
- Unparallel piping versatility for all filter styles. Standard outlets, as illustrated, plus 3 additional piping variations from filter influent ports.
- Totally non-corrosive construction: Rugged heavy-duty ABS body and cover- abrasion resistant Noryl valve disc key.
- Water pressure from pump assures constant and uniform seal in all positions
- Unique design assures exceptionally low pressure drop, resulting in more efficient filtration and equivalent pump horsepower.
- Automatic self-cleaning design prevents clogging or sticking. By depressing handle, valve disc key is lifted off valve seat gasket, allowing gasket to be flushed clean.
- Precision-engineered seals - Dual O-ring/Teflon shaft seal, molded Noeprene valve seat, and high pressure o-ring cover seal.
- Easy to operate lever-action handle rotates on a non-stop metallic bearing.
