Description

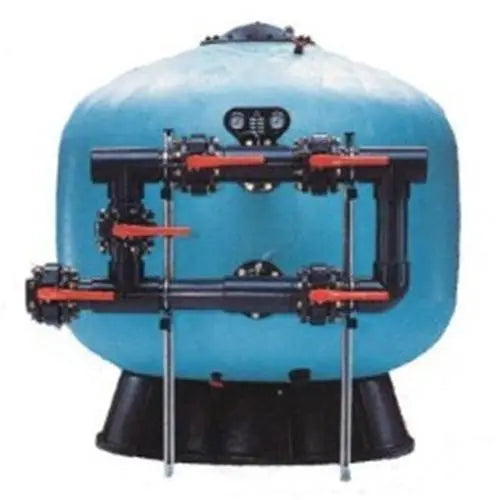

Astral 79" Commercial Sand Filter
The 06634 Astral 79” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 79” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 79” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.
Specifications:
- Filter Diameter: 79”
- Filtration Area: 33.8 Sq Ft
- Max Flow Rate: 676 GPM
- Volume: 1,162 gallons
- Connections: 6”
- Sand Required: 8,400 lbs
- Gravel Required: 2,550 lbs
- Empty Weight: 915 lbs
Application:
Commercial Pool Installations
Features:
- Increased Flow Capacity
- Advanced Filter Design
- Valve Sold Separately
- NSF Listed
- Large Media Drain Port
- Dual Pressure Gauge
- 16" Manhole
- Manual Air and Water Purge
