Description

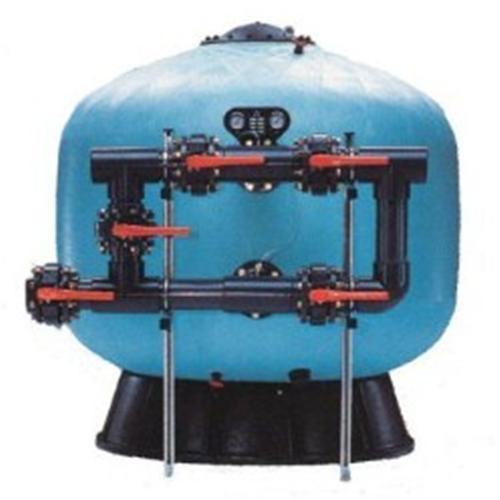

Astral 55" Commercial Sand Filter
The 06681 Astral 55” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 55” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 55” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.
Specifications:
- Filter Diameter: 55”
- Filtration Area: 16.58 Sq Ft
- Max Flow Rate: 331 GPM
- Volume: 528 gallons
- Connections: 4”
- Sand Required: 4,100 lbs
- Gravel Required: 1,100 lbs
- Empty Weight: 510 lbs
Application:
Commercial Pool Installations
Features:
- Increased Flow Capacity
- Advanced Filter Design
- Valve Sold Separately
- NSF Listed
- Large Media Drain Port
- Dual Pressure Gauge
- 16" Manhole
- Manual Air and Water Purge
