Description

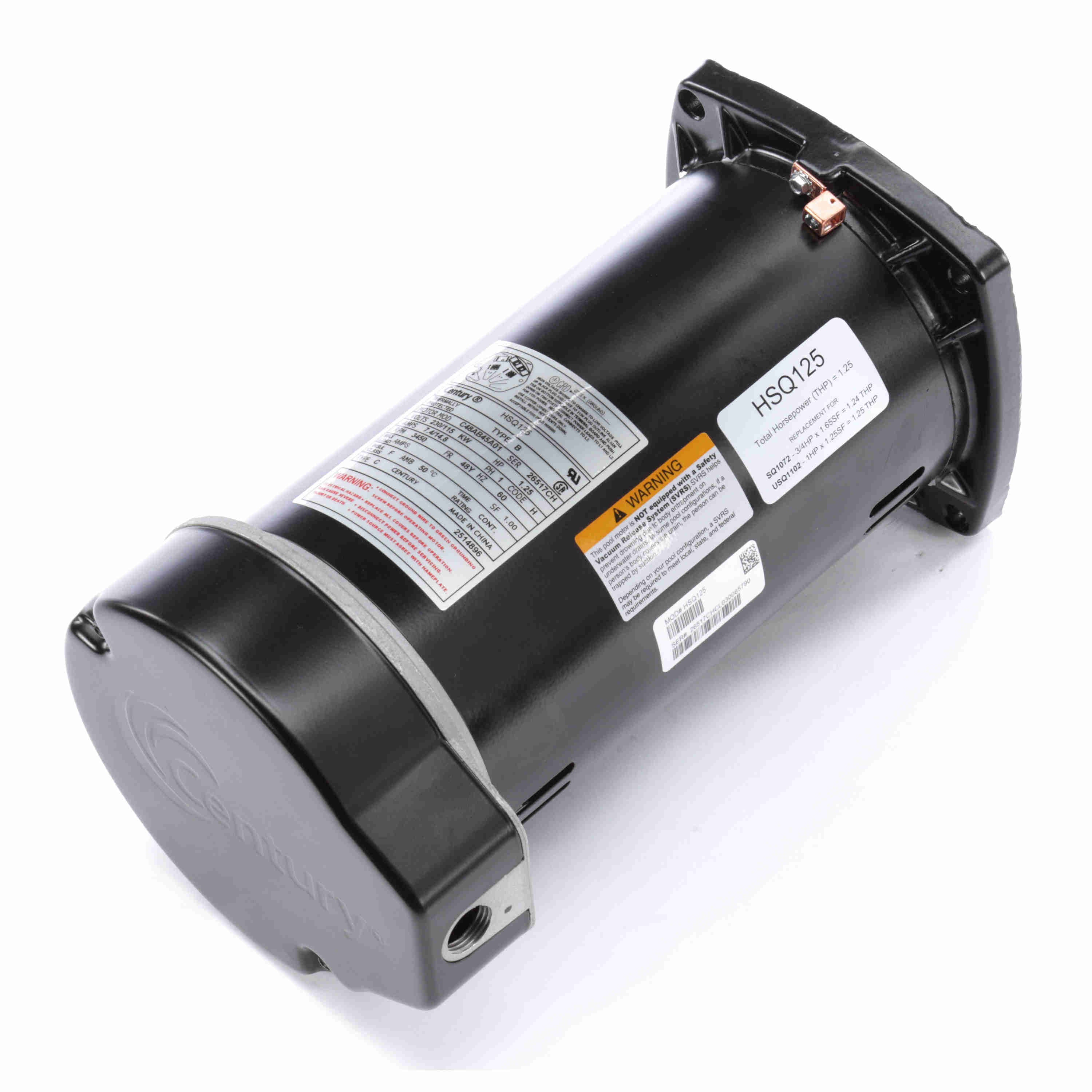

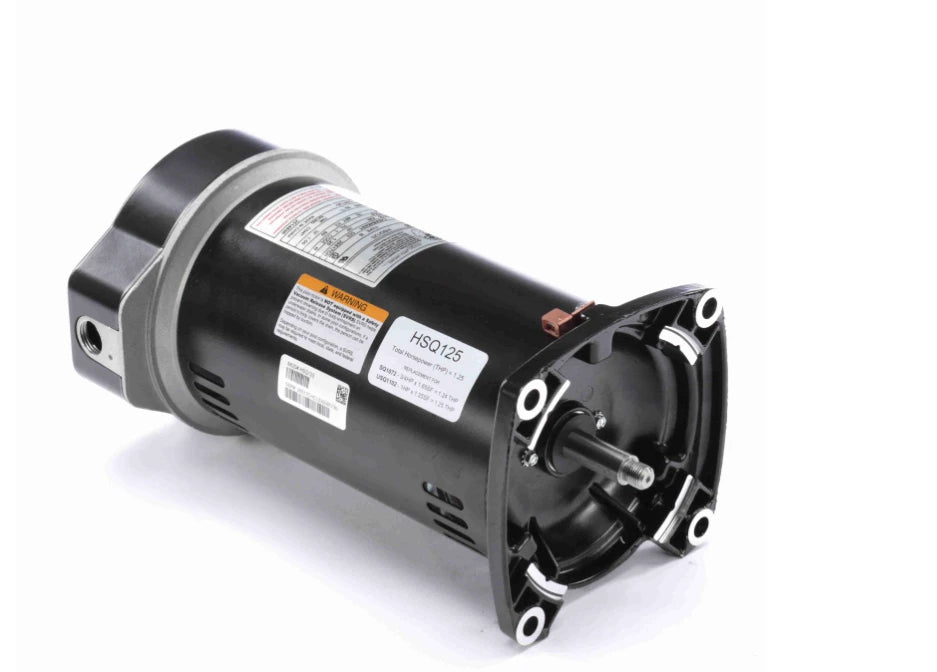

AO Smith Century 1.25 HP 115/230V Motor HSQ125 is a professional grade motor with a hybrid end frame design. The hybrid end frame design incorporates a unique BX hole placement and a new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access.
It features a PCB terminal board formed from highly durable PCB material. The larger terminal board boasts a layout that is both hand- and tool-friendly.
The motor includes a voltage change device with a new voltage change plug that virtually eliminates mis-wiring errors. The plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal board.
Created with definitive shaft access, the design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
Features:
- New - Hybrid end frame design
- New - PCB terminal board
- New - Voltage change device
- New - Definitive shaft access (7/16” wrench)
- Auto Protector
- “1081” Design
- Sealed Ball Bearings
- 60 Hz
- 50°C Ambient
- Rotation: CCW Pump End
- 303 Stainless Steel Threaded Shaft
- Open Dripproof
- 203 Bearings on both ends
