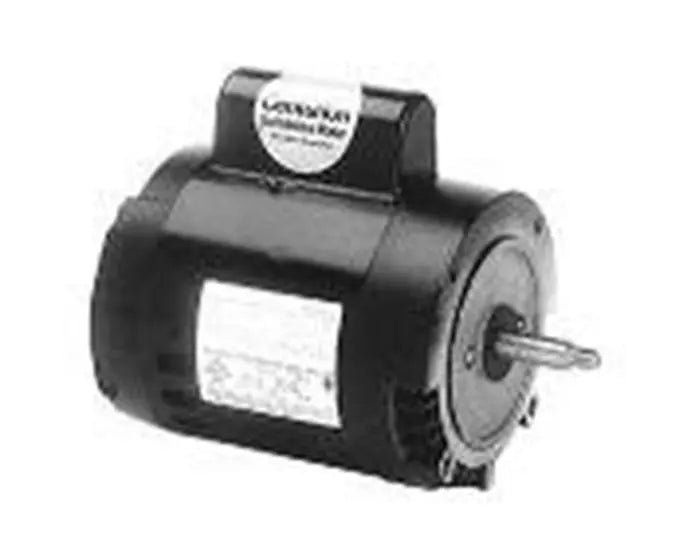

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 3/4 HP - B127

Description

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 3/4 Horsepower replaces the American Products Eagle and Noryl, Hayward Super/Super II Pump, and Purex Aquatron II.

Features:

  • Switchless
  • High service factor
  • Aluminum NEMA "C" brackets
  • 7/16-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Efficiency Group: Standard
  • Enclosure Design: Open Drip proof
  • Flange Material: Aluminum
  • Frame: 56J
  • Frequency Rating: 60 Hz
  • Full Load Amps: 6.0/12.0 A
  • HP: 0.75
  • Insulation Class: B
  • Motor Design: PSC
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face, No Base
  • Number of Speed: 1-Speed
  • Overall Length: 12.01 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.50
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-9/16 Inch
  • Shaft Material: 303 Stainless Steel
  • Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
  • Thrust Horsepower: 1.13
  • Voltage Rating: 115/230 V

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 3/4 HP - B127

Product form

SKU: B127
Barcode: 786674011886

AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 3/4 Horsepower replaces the American Products Eagle and Noryl,... Read more

In Stock  99% of In Stock orders will ship out same day as long as you order by 2pm EST. Any order after 2pm EST will be shipped the next business day.

$268.15

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    AO Smith Centurion 1081 C Frame Round Flange Full Rated Motor 3/4 Horsepower replaces the American Products Eagle and Noryl, Hayward Super/Super II Pump, and Purex Aquatron II.

    Features:

    • Switchless
    • High service factor
    • Aluminum NEMA "C" brackets
    • 7/16-20 UNF-2A RH threaded shaft

    Specifications:

    • Ambient Temperature: 50 deg C
    • Bearing Type: Ball
    • Diameter: 6-1/2 Inch
    • Duty Cycle: Continuous
    • Efficiency Group: Standard
    • Enclosure Design: Open Drip proof
    • Flange Material: Aluminum
    • Frame: 56J
    • Frequency Rating: 60 Hz
    • Full Load Amps: 6.0/12.0 A
    • HP: 0.75
    • Insulation Class: B
    • Motor Design: PSC
    • Motor Shaft Rotation: CCWPE
    • Motor Thermal Protection: Auto
    • Mounting Type: C-Face, No Base
    • Number of Speed: 1-Speed
    • Overall Length: 12.01 Inch
    • Phase: 1-Phase
    • RPM: 3450
    • Service Factor: 1.50
    • Shaft Design: Threaded
    • Shaft Diameter: 5/8 Inch
    • Shaft Length: 2-9/16 Inch
    • Shaft Material: 303 Stainless Steel
    • Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
    • Thrust Horsepower: 1.13
    • Voltage Rating: 115/230 V
