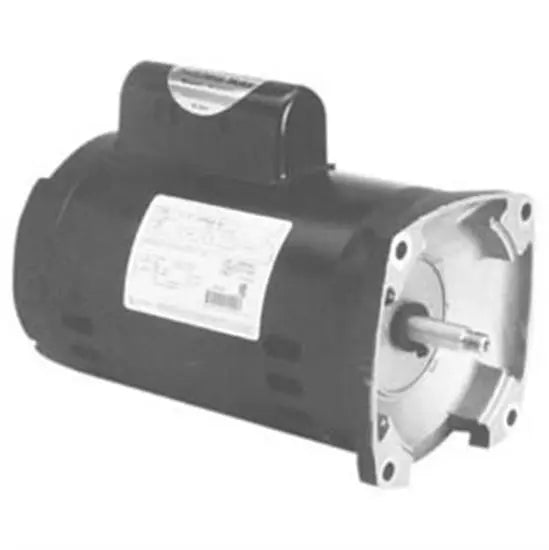

AO Smith 2HP 2 Speed Standard Pool Pump Motor - B985

Description

AO Smith 2 Horsepower 2 Speed Standard Pool Pump Motor features 2 Speed, High Service Factor, 40C Ambient, High Speed Switchless, Low Speed Microsmith and square Flange.

Features:

  • Low service factor
  • Energy efficient
  • 1/2-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature : 50 deg C
  • Bearing Type : Ball
  • Diameter : 6-1/2 Inch
  • Duty Cycle : Continuous
  • Enclosure Design : Open Drip proof
  • Frame : 56Y
  • Frequency Rating : 60 Hz
  • Full Load Amps : 10.0/3.5 A
  • HP : 2/0.33
  • Insulation Class : B
  • Motor Design : Capacitor Start/Run on Low Speed, PSC on High Speed
  • Motor Shaft Rotation : CCWPE
  • Motor Thermal Protection : Auto
  • Mounting Type : C-Face
  • Number of Speed : 2-2-VT
  • Overall Length : 14.40 Inch
  • Phase : 1-Phase
  • RPM : 3450/1725
  • Service Factor : 1.10
  • Shaft Design : Threaded
  • Shaft Diameter : 5/8 Inch
  • Shaft Length : 1-7/8 Inch
  • Standards Approvals : UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower : 2.2
  • Voltage Rating : 230 V

AO Smith 2HP 2 Speed Standard Pool Pump Motor - B985

Product form

SKU: B985
Barcode: 786674013545

AO Smith 2 Horsepower 2 Speed Standard Pool Pump Motor features 2 Speed, High Service Factor, 40C Ambient, High Speed... Read more

In Stock  99% of In Stock orders will ship out same day as long as you order by 2pm EST. Any order after 2pm EST will be shipped the next business day.

$676.26

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    AO Smith 2 Horsepower 2 Speed Standard Pool Pump Motor features 2 Speed, High Service Factor, 40C Ambient, High Speed Switchless, Low Speed Microsmith and square Flange.

    Features:

    • Low service factor
    • Energy efficient
    • 1/2-20 UNF-2A RH threaded shaft

    Specifications:

    • Ambient Temperature : 50 deg C
    • Bearing Type : Ball
    • Diameter : 6-1/2 Inch
    • Duty Cycle : Continuous
    • Enclosure Design : Open Drip proof
    • Frame : 56Y
    • Frequency Rating : 60 Hz
    • Full Load Amps : 10.0/3.5 A
    • HP : 2/0.33
    • Insulation Class : B
    • Motor Design : Capacitor Start/Run on Low Speed, PSC on High Speed
    • Motor Shaft Rotation : CCWPE
    • Motor Thermal Protection : Auto
    • Mounting Type : C-Face
    • Number of Speed : 2-2-VT
    • Overall Length : 14.40 Inch
    • Phase : 1-Phase
    • RPM : 3450/1725
    • Service Factor : 1.10
    • Shaft Design : Threaded
    • Shaft Diameter : 5/8 Inch
    • Shaft Length : 1-7/8 Inch
    • Standards Approvals : UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
    • Thrust Horsepower : 2.2
    • Voltage Rating : 230 V
