Description

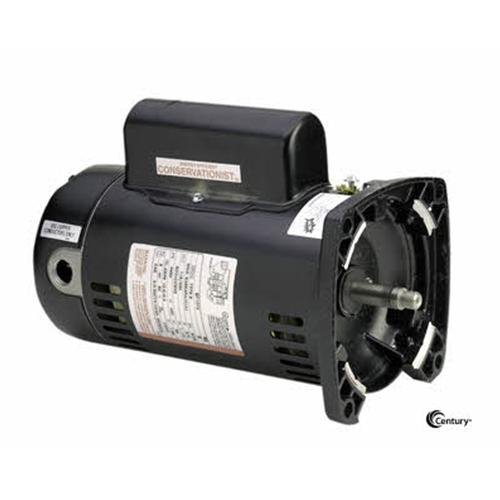

AO Smith 1.5 HP Full Rated 230V 2-Speed Pump Motor - Energy Efficient is a two-speed, two-compartment square flange replacement pool pump motor. This pool pump motor is used on many Sta-Rite, Red Jacket, and Sears Jet and Pool Pumps. Meets California Energy Commission Appliance Regulations. AO Smith is a leading supplier of electrical motors for residential, commercial and industrial applications.
A.O. Smith was recently acquired by Century Electric Motors. You can expect the same great quality motors from Century Electric. Motors are now labeled as Century Electric formerly A.O. Smith.
Specifications:
- Horsepower, 1.5~.25
- RPM, 3450/1725
- Voltage, 230
- Amps (Hi-Lo), 10.0/8.0
- Service Factor, 1.47
- Total Horsepower, 2.21
- Frame, 48Y
- Approx. "AG", 13-9/16
- Rotation, CCW Pump End
Features:
- All Copper Windings
- Single Phase Auto Protector
- Open Dripproof
- Class B Insulation
- 50°C Ambient
- 60 Hz
- 303 Stainless Steel Threaded Shaft
- Energy Efficient Capacitor Start Low Speed, PSC High Speed
- UL1081
