Description

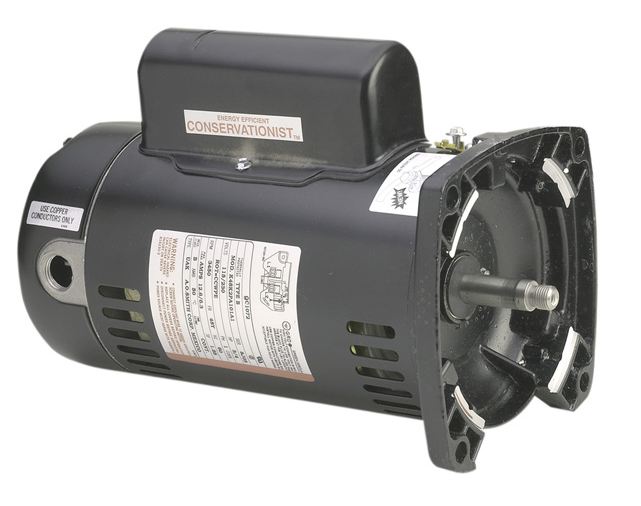

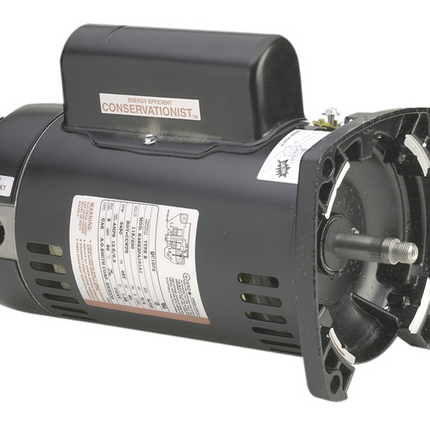

A.O Smith 1 1/2 x 1/4 HP - 230V 9.5 Pool Motor is replacement part for swimming pool pumps has a threaded shaft and fits most pumps that require a square flange motor. It operates on 230-Volt. It is compatible with Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas, and Max-E-Pro pumps, Hayward Max-Flow II pumps, and Pentair Whisper-Flo, Challenger and Ultra-Flow pumps.
A.O. Smith was recently acquired by Century Electric Motors. You can expect the same great quality motors from Century Electric. Motors are now labeled as Century Electric formerly A.O. Smith.
Features:
- High Speed: 1.5 HP
- Low Speed: 1/4 HP
- High Speed amps: 9.5
- Low Speed amps: 2.5
- Up Rated
- 230 Volts
- Service Factor: 1.10
- 48Y Frame
- 48Y motor body diameter is 1/2" smaller than 56Y
- Square Flange (Face)
- 5/8" Threaded Shaft
- All copper windings
- Automatic thermal protection
- Stainless steel threaded shaft
- Double sealed ball bearings
